Admin Console

Envoy Gateway provides a built-in web-based admin console that offers a comprehensive interface for monitoring, debugging, and managing your Envoy Gateway deployment. The admin console provides real-time visibility into the control plane status, configuration state, performance metrics, and debugging capabilities.

Prerequisites

Install Envoy Gateway

Follow the steps below to install Envoy Gateway and the example manifest. Before proceeding, you should be able to query the example backend using HTTP.

Install Add-ons

Envoy Gateway provides an add-ons Helm chart to simplify the installation of observability components.
The documentation for the add-ons chart can be found here.

Follow the instructions below to install the add-ons Helm chart.

helm install eg-addons oci://docker.io/envoyproxy/gateway-addons-helm --version v0.0.0-latest -n monitoring --create-namespace

By default, the OpenTelemetry Collector is disabled. To install add-ons with OpenTelemetry Collector enabled, use the following command.

helm install eg-addons oci://docker.io/envoyproxy/gateway-addons-helm --version v0.0.0-latest --set opentelemetry-collector.enabled=true -n monitoring --create-namespace

Overview

The admin console is automatically enabled and provides the following key features:

• Dashboard: Overview of system status and quick access to all features
• Server Information: Detailed runtime information about Envoy Gateway components
• Configuration Dump: Real-time view of Gateway API resources and their status
• Statistics: Control plane metrics in Prometheus format
• Performance Profiling: pprof endpoints for debugging and performance analysis

Accessing the Admin Console

By default, the admin console is available on localhost:19000. There are two ways to access it:

Method 1: Using kubectl port-forward

kubectl port-forward -n envoy-gateway-system deployment/envoy-gateway 19000:19000

Then open your browser and navigate to:

http://localhost:19000

Method 2: Using egctl dashboard command

You can install egctl by following the installation guide.

egctl x dashboard eg

This command will automatically set up port forwarding and open the admin console in your default browser.

Configuration

The admin console can be configured through the EnvoyGateway configuration resource:

Development Configuration

For development environments, you may want to enable additional debugging features:

apiVersion: gateway.envoyproxy.io/v1alpha1
kind: EnvoyGateway
metadata:
  name: envoy-gateway-dev
  namespace: envoy-gateway-system
spec:
  admin:
    address:
      # Allow external access (use with caution)
      host: "0.0.0.0"
      port: 19000

    # Enable pprof for performance debugging
    enablePprof: true

Production Configuration

For production environments, use more restrictive settings:

apiVersion: gateway.envoyproxy.io/v1alpha1
kind: EnvoyGateway
metadata:
  name: envoy-gateway-prod
  namespace: envoy-gateway-system
spec:
  admin:
    address:
      # Localhost only for security
      host: "127.0.0.1"
      port: 19000

    # Disable pprof in production
    enablePprof: false

Features

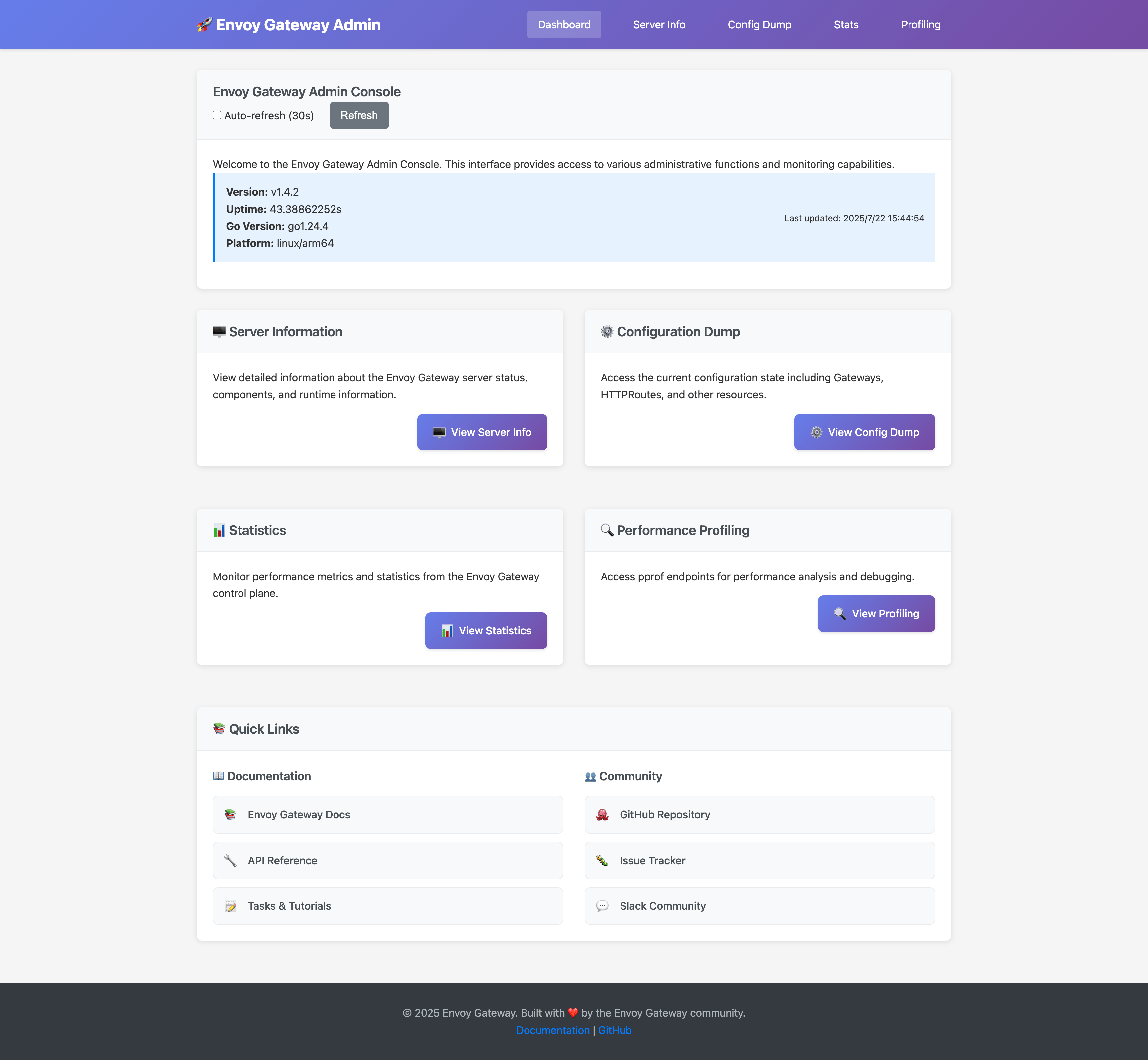

Dashboard

The main dashboard provides:

• System Information: Version, uptime, and platform details
• Component Status: Real-time status of all Envoy Gateway components
• Quick Navigation: Easy access to all admin console features
• Auto-refresh: Automatic updates every 30 seconds

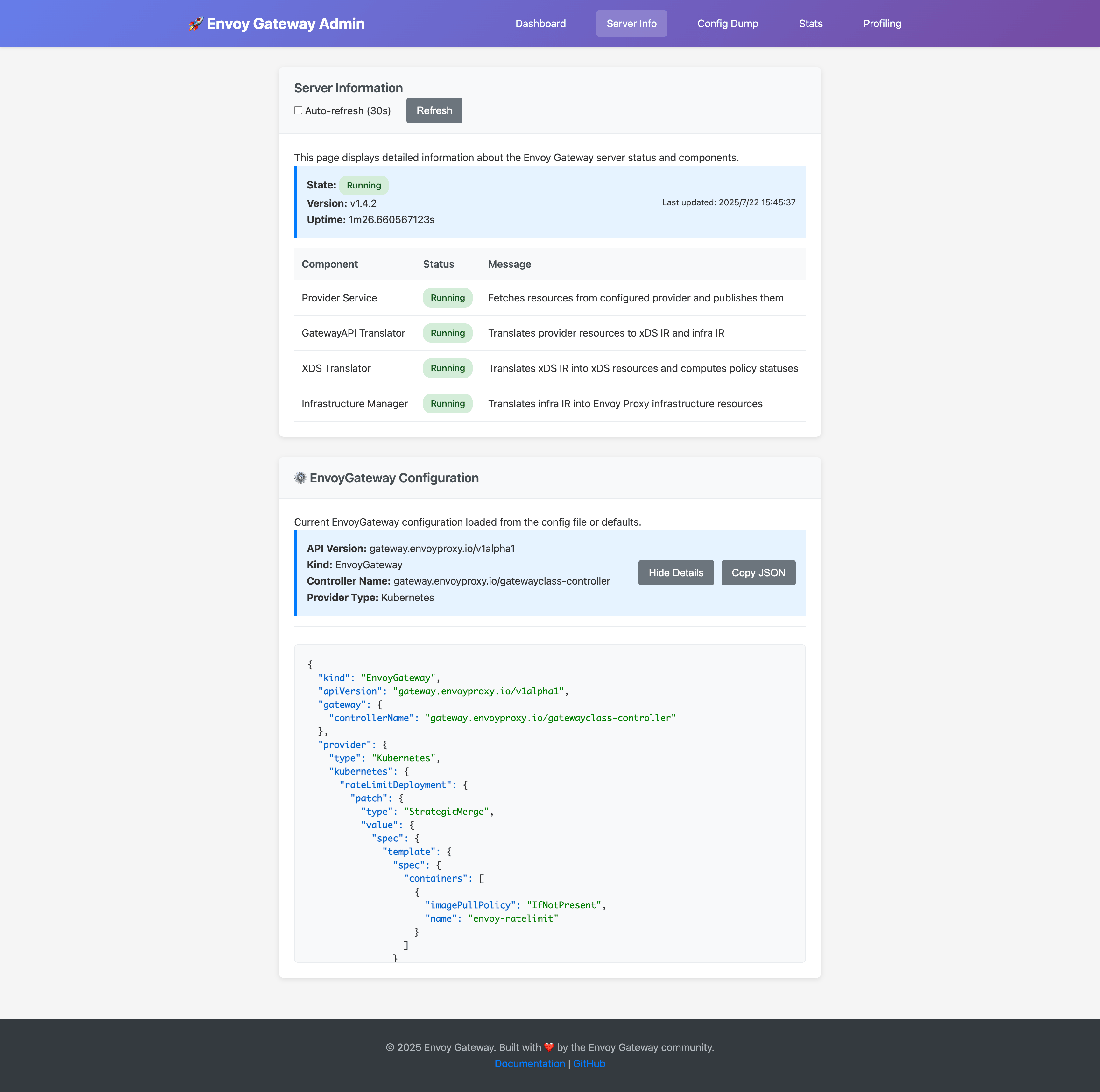

Server Information

The server info page displays:

• Component Health: Status of Provider Service, GatewayAPI Translator, xDS Translator, and Infrastructure Manager
• Runtime Details: Version information, uptime, and system metrics
• Configuration: Current EnvoyGateway configuration settings

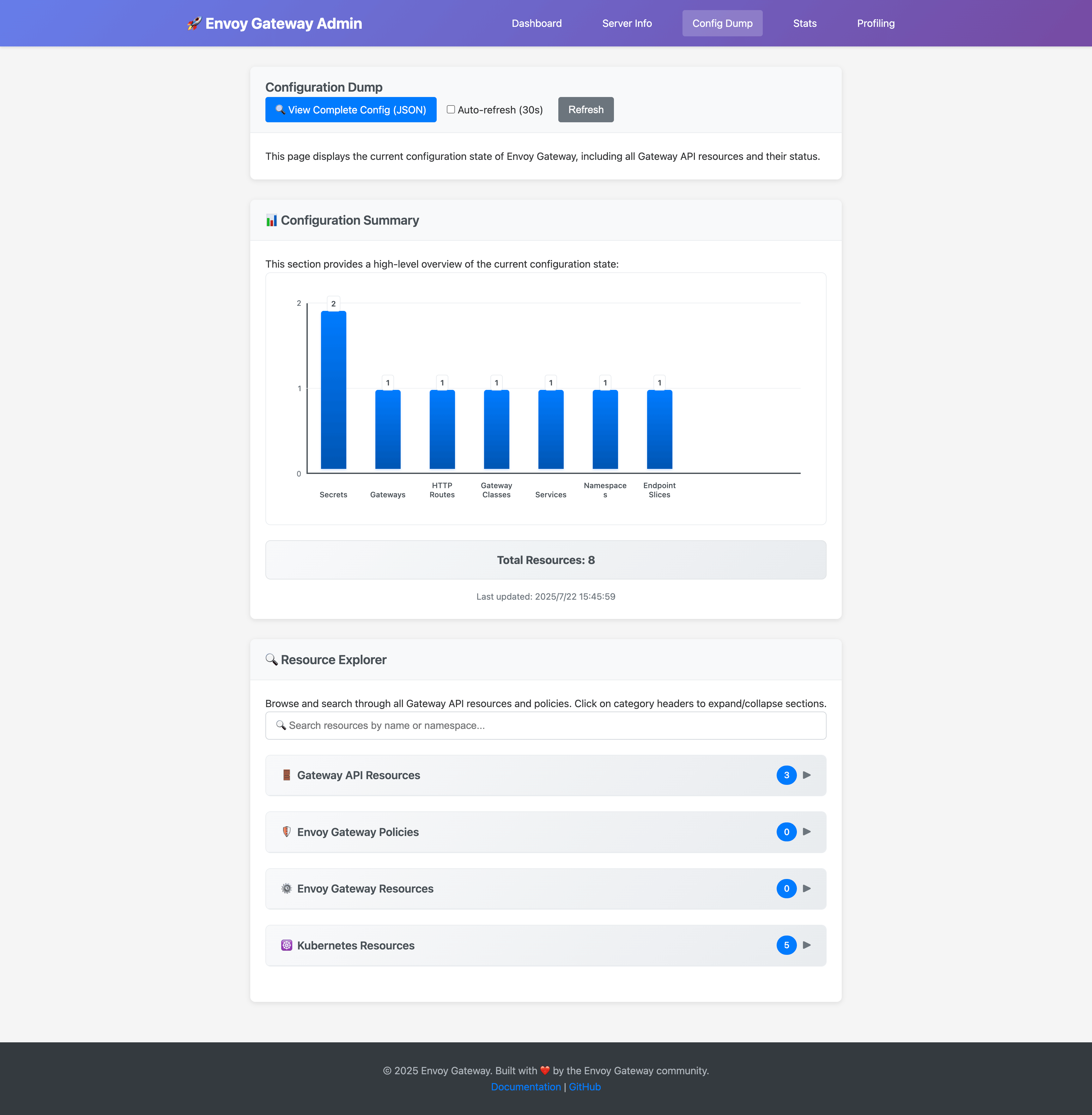

Configuration Dump

The config dump feature provides:

• Resource Explorer: Browse all Gateway API resources (Gateways, HTTPRoutes, etc.)
• Search Functionality: Find resources by name or namespace
• Real-time Updates: Live view of configuration changes
• JSON Export: Download complete configuration as JSON

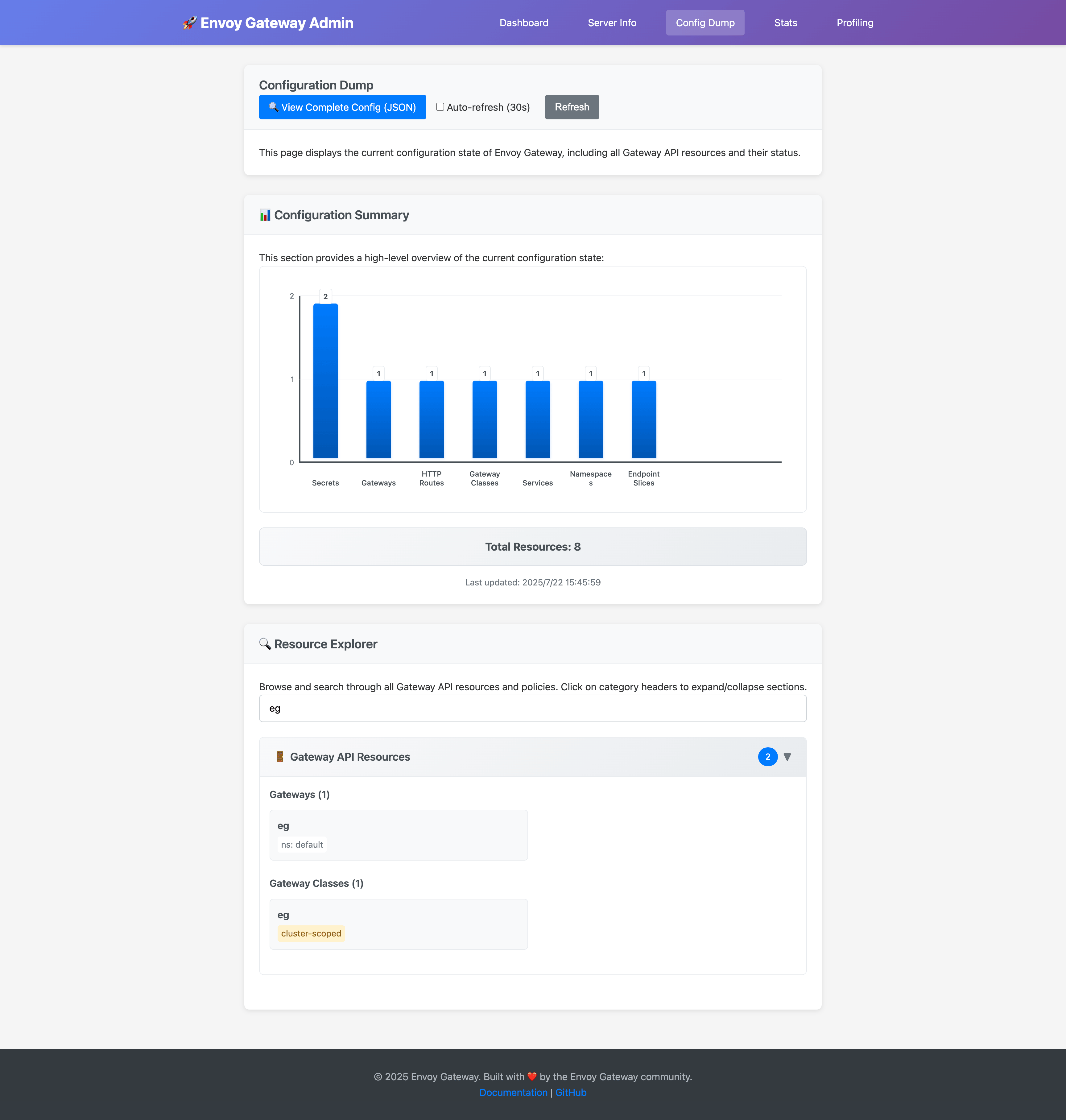

The search functionality allows you to quickly find specific resources:

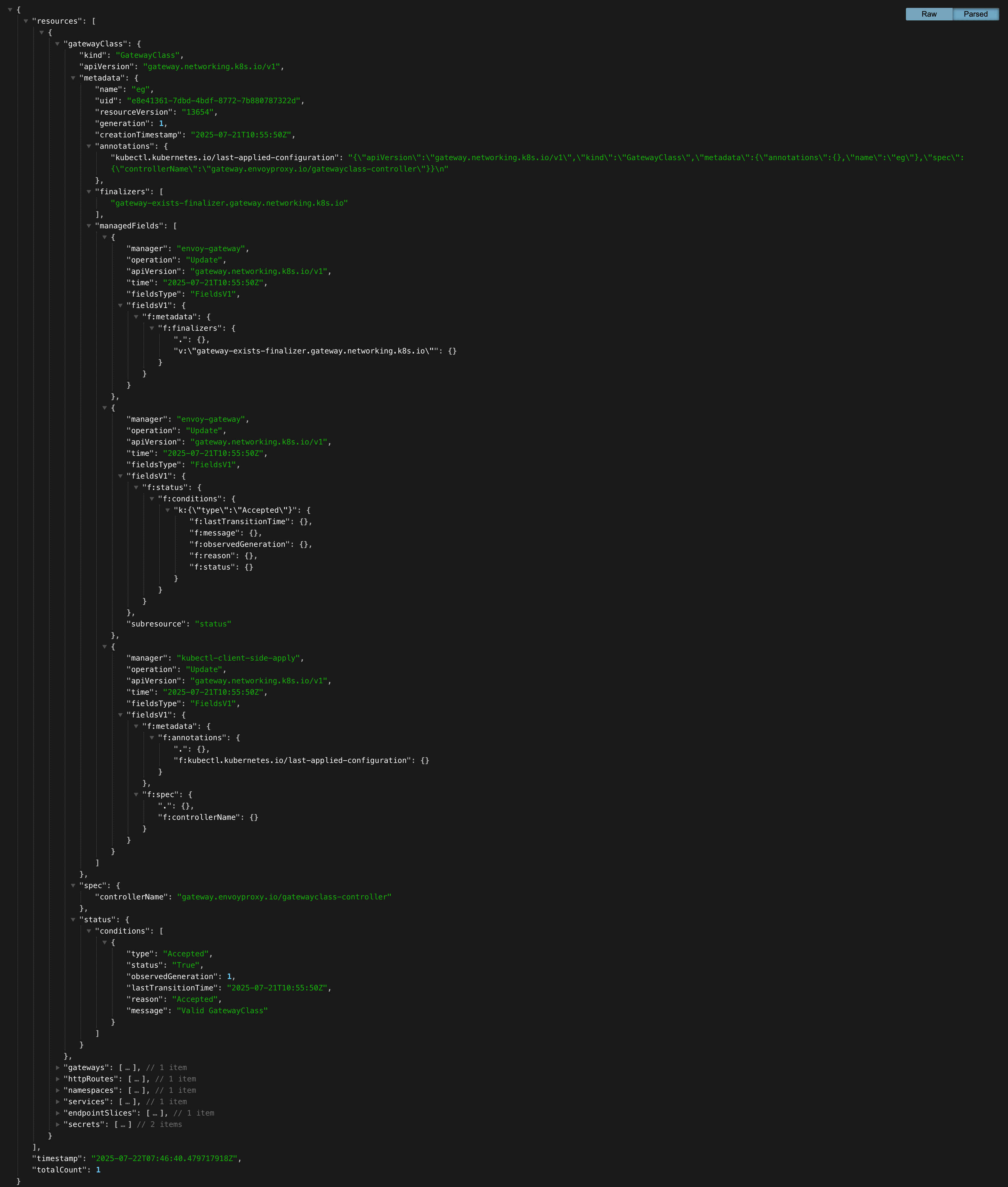

You can also view the complete configuration dump in JSON format:

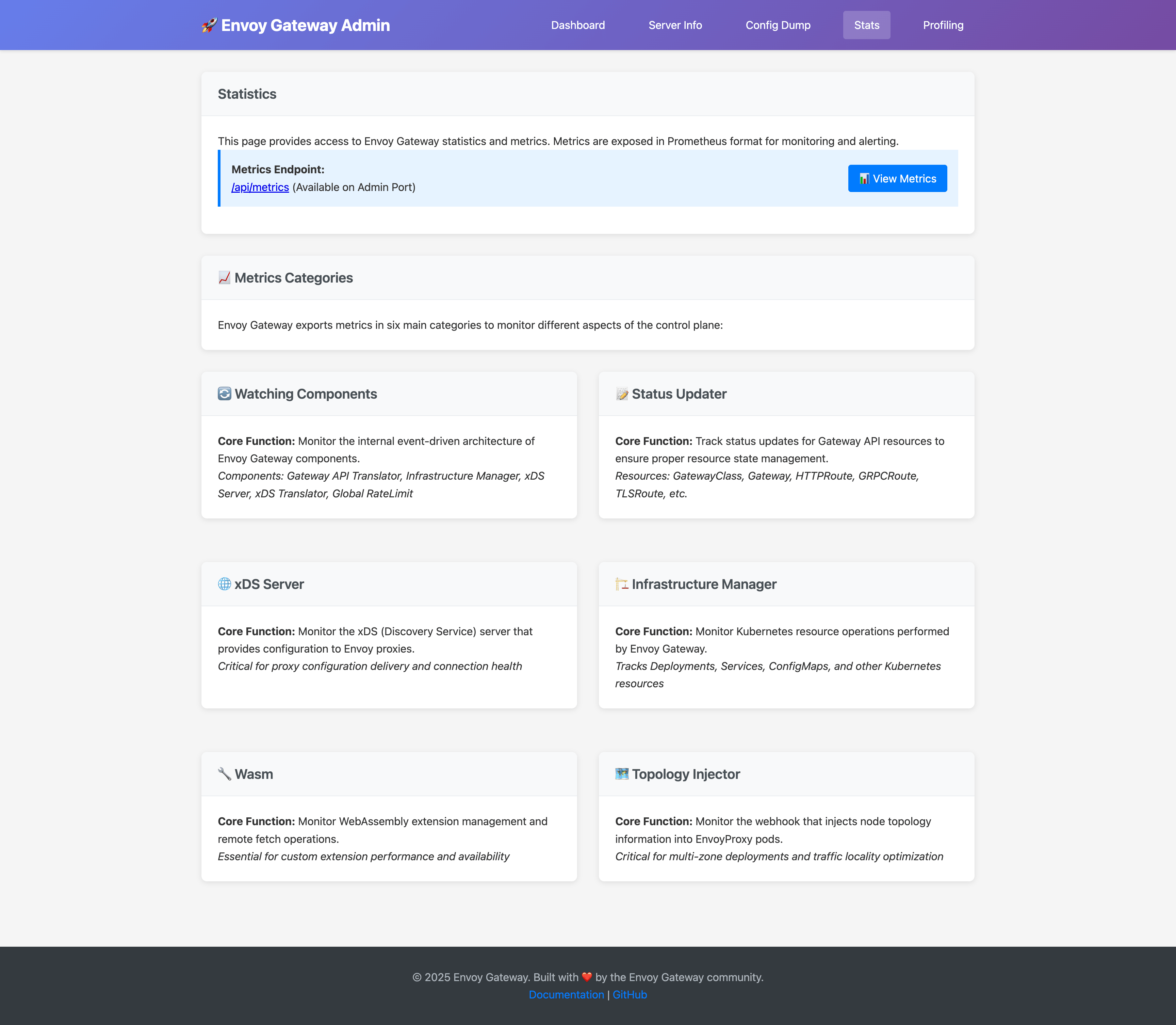

Statistics

The statistics page offers:

• Prometheus Metrics: All control plane metrics in Prometheus format
• Metrics Categories: Organized view of different metric types:
  • Watching Components (event-driven architecture metrics)
  • Status Updater (resource status update metrics)
  • xDS Server (proxy configuration delivery metrics)
  • Infrastructure Manager (Kubernetes resource operation metrics)
  • Wasm (WebAssembly extension metrics)
  • Topology Injector (node topology injection metrics)

Access metrics directly via: http://localhost:19000/api/metrics

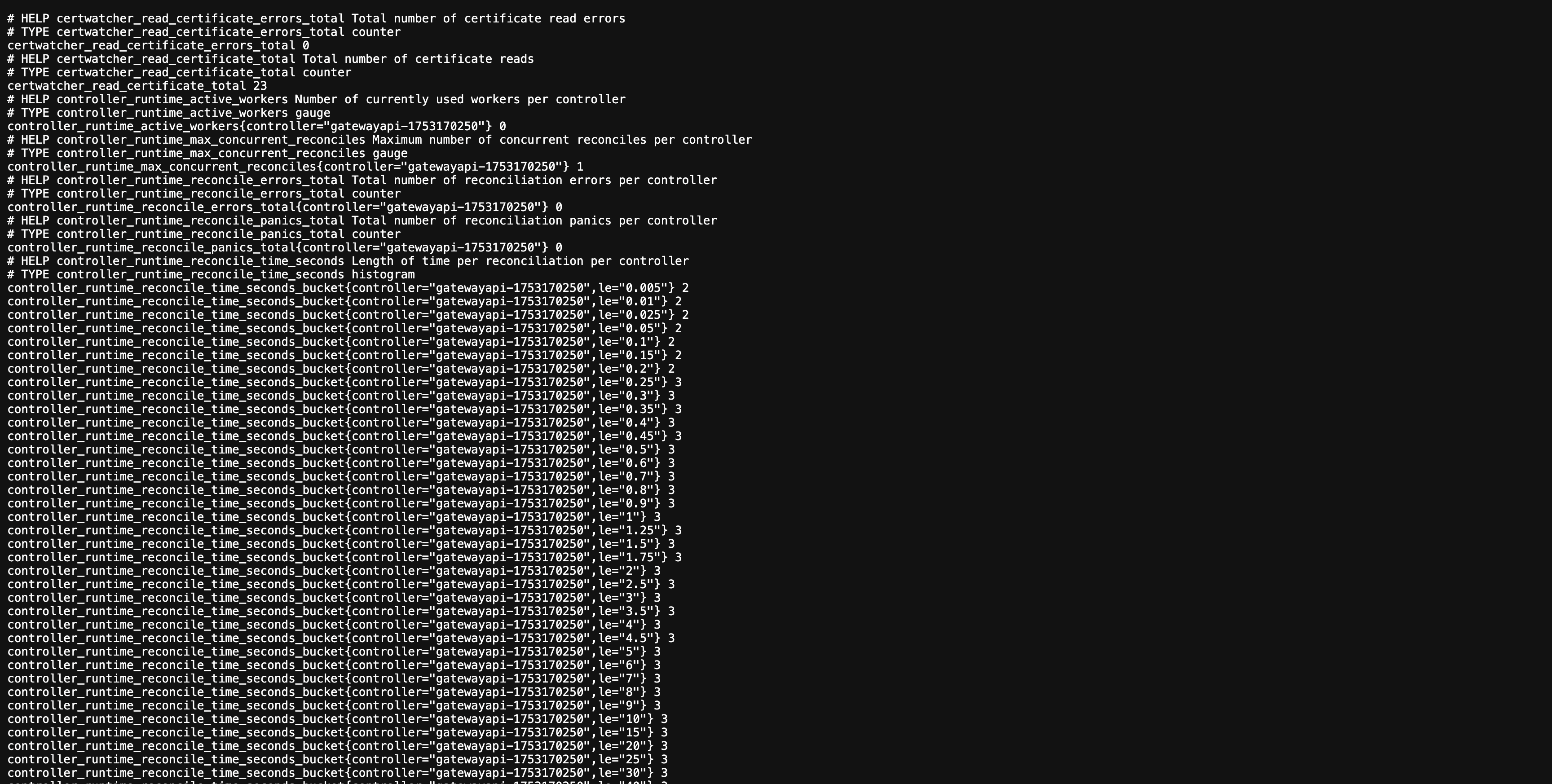

The metrics endpoint provides detailed Prometheus metrics:

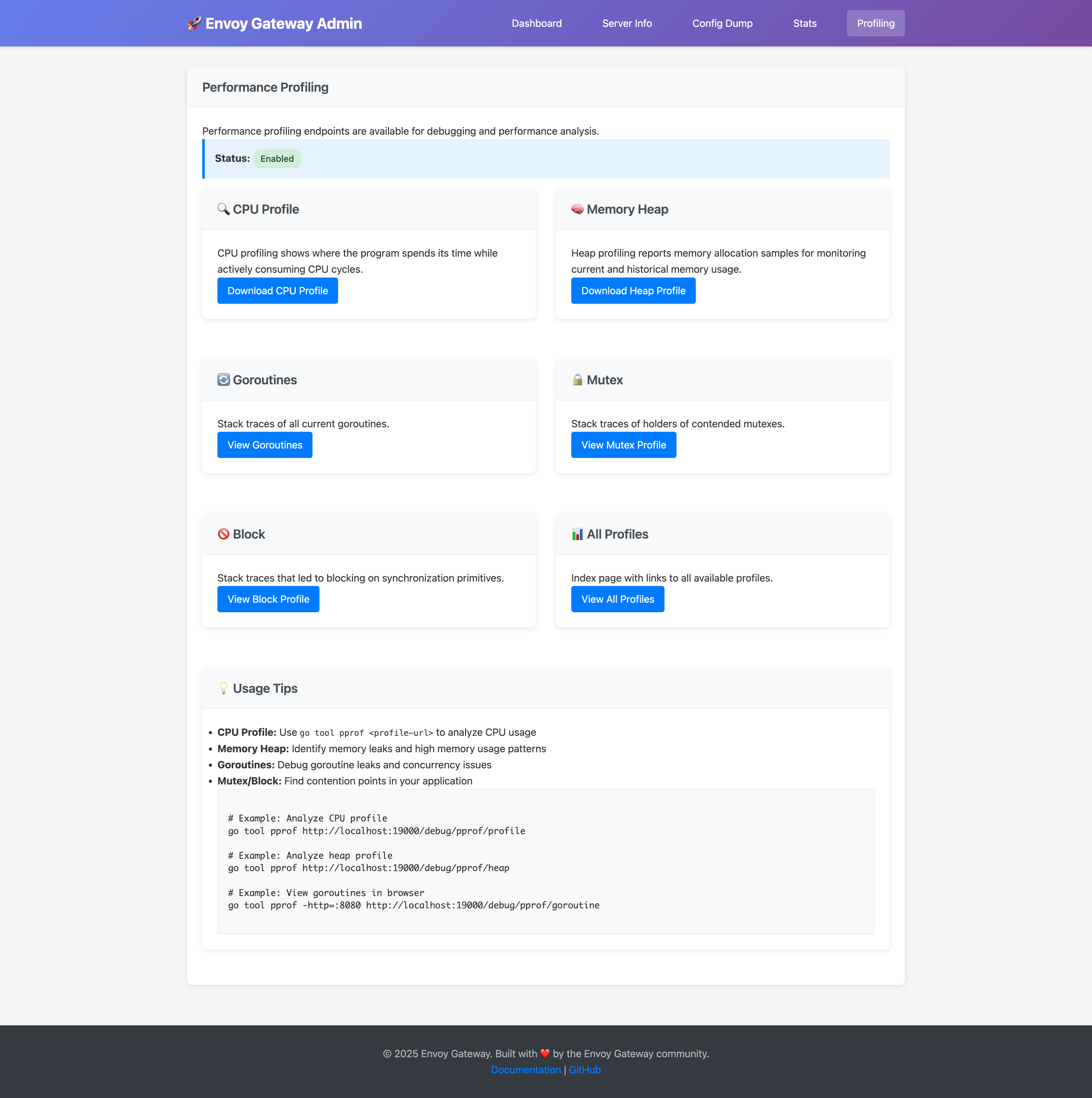

Performance Profiling

When enablePprof is set to true, the profiling page provides:

• CPU Profile: Analyze CPU usage patterns
• Memory Heap: Monitor memory allocation and identify leaks
• Goroutines: Debug concurrency issues and goroutine leaks
• Mutex/Block: Find contention points in the application
